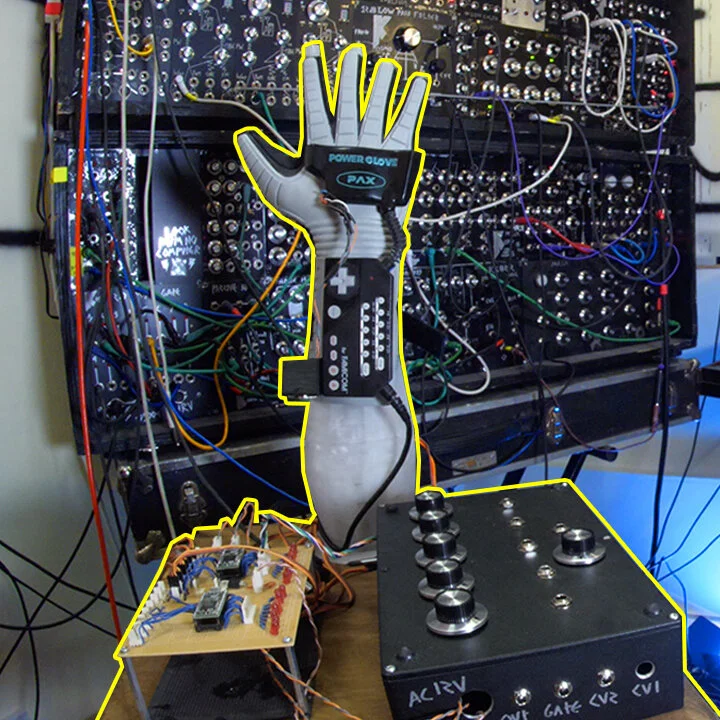

It was only a matter of time i did a #retro NES #powerglove hack! Thanks very much for the support! It means projects like this can keep getting done, the 10...

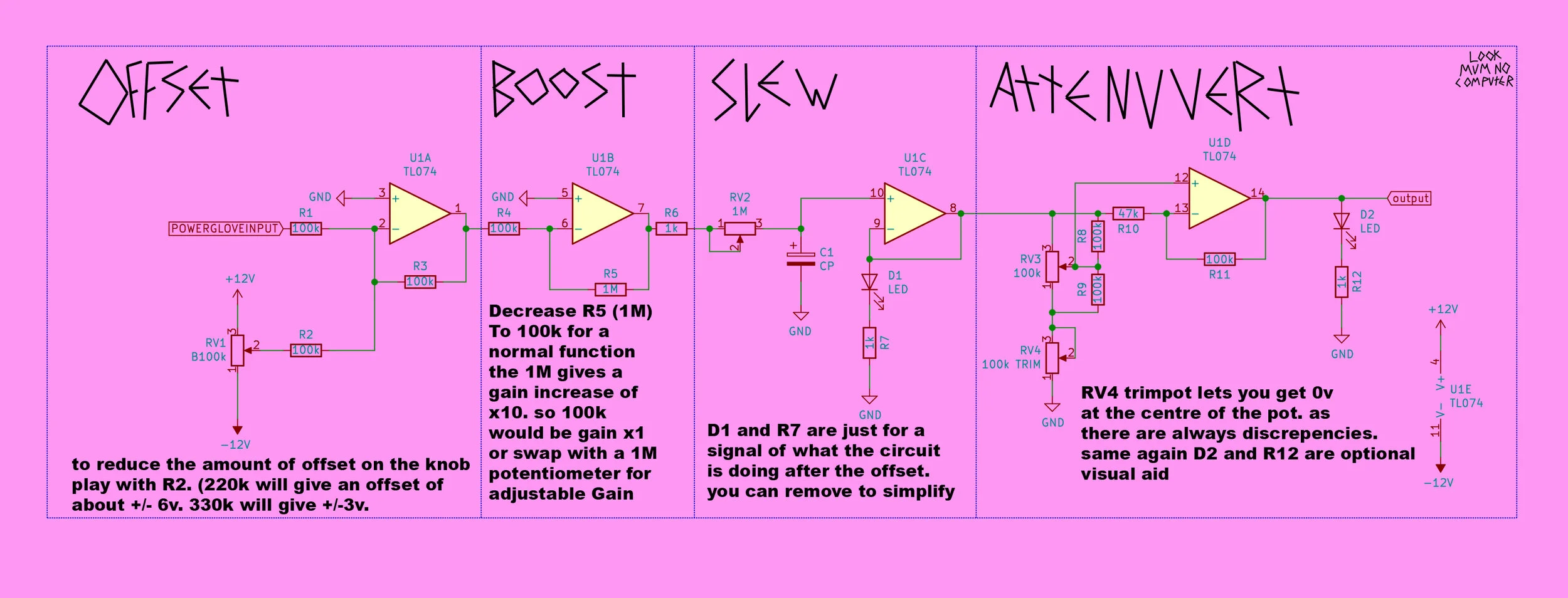

THIS IS THE CIRCUIT I USED, it offsets the voltage, boosts it and then you can add a slew to smoothen it off a bit, and then you can attenuvert it. its a useful thing to have around for other sensors. gyroscopes would work well with this.

POWERGLOVE

About

THIS IS THE CIRCUIT I USED, it offsets the voltage, boosts it and then you can add a slew to smoothen it off a bit, and then you can attenuvert it. its a useful thing to have around for other sensors. gyroscopes would work well with this.
