GAMEBOY TRIPLE OSCILLATOR

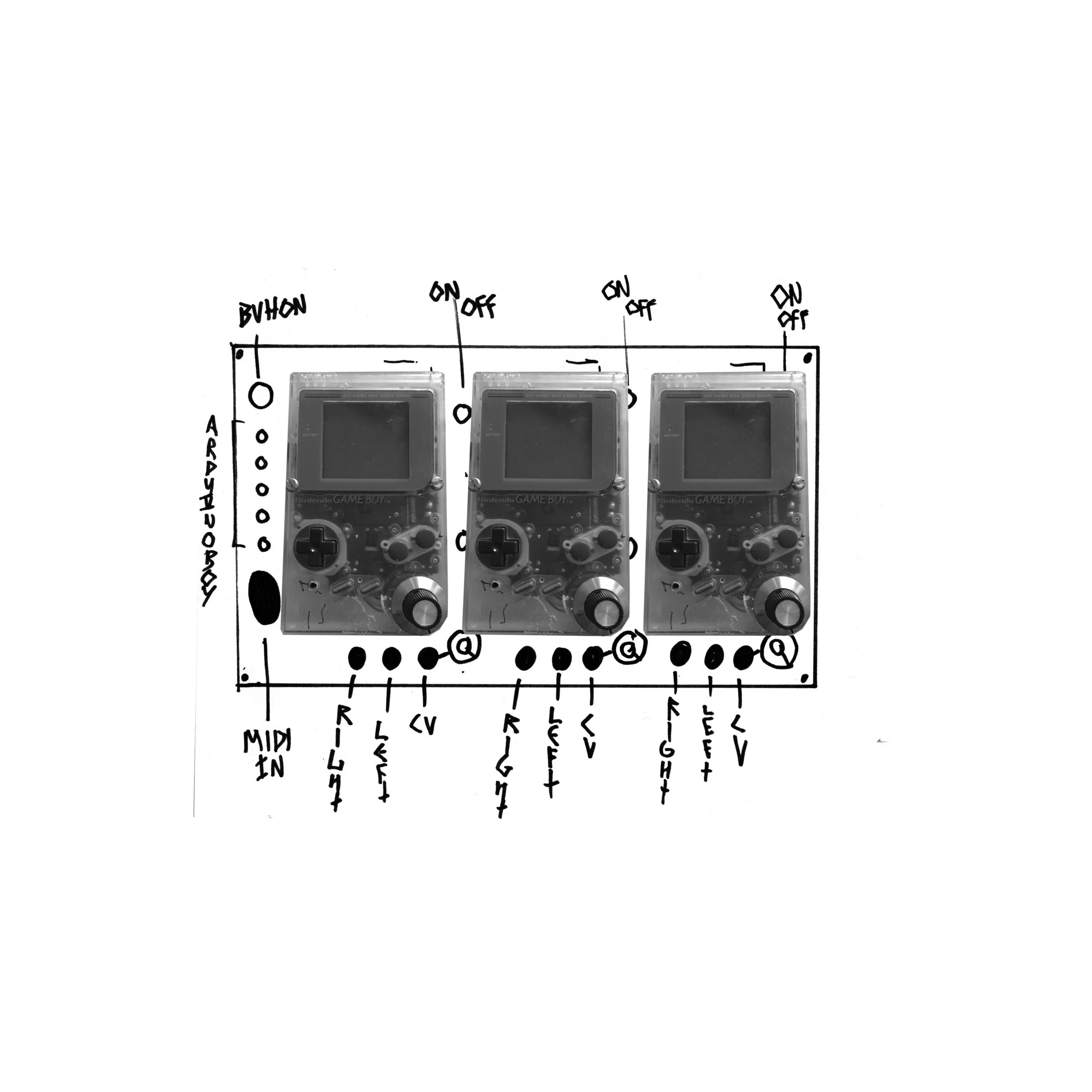

SCAN002 copy.jpg



This is a gameboy triple oscillator. basically meaning, its 3 gameboys acting as separate oscillators. each seperately tuneable, and synced together with a common oscillator driver. With Cv inputs on pitch and volume. A lot of other adjustments are made through the midi port.

Its basically 3 arduinoboys stuck together! more info on arduinoboy here.

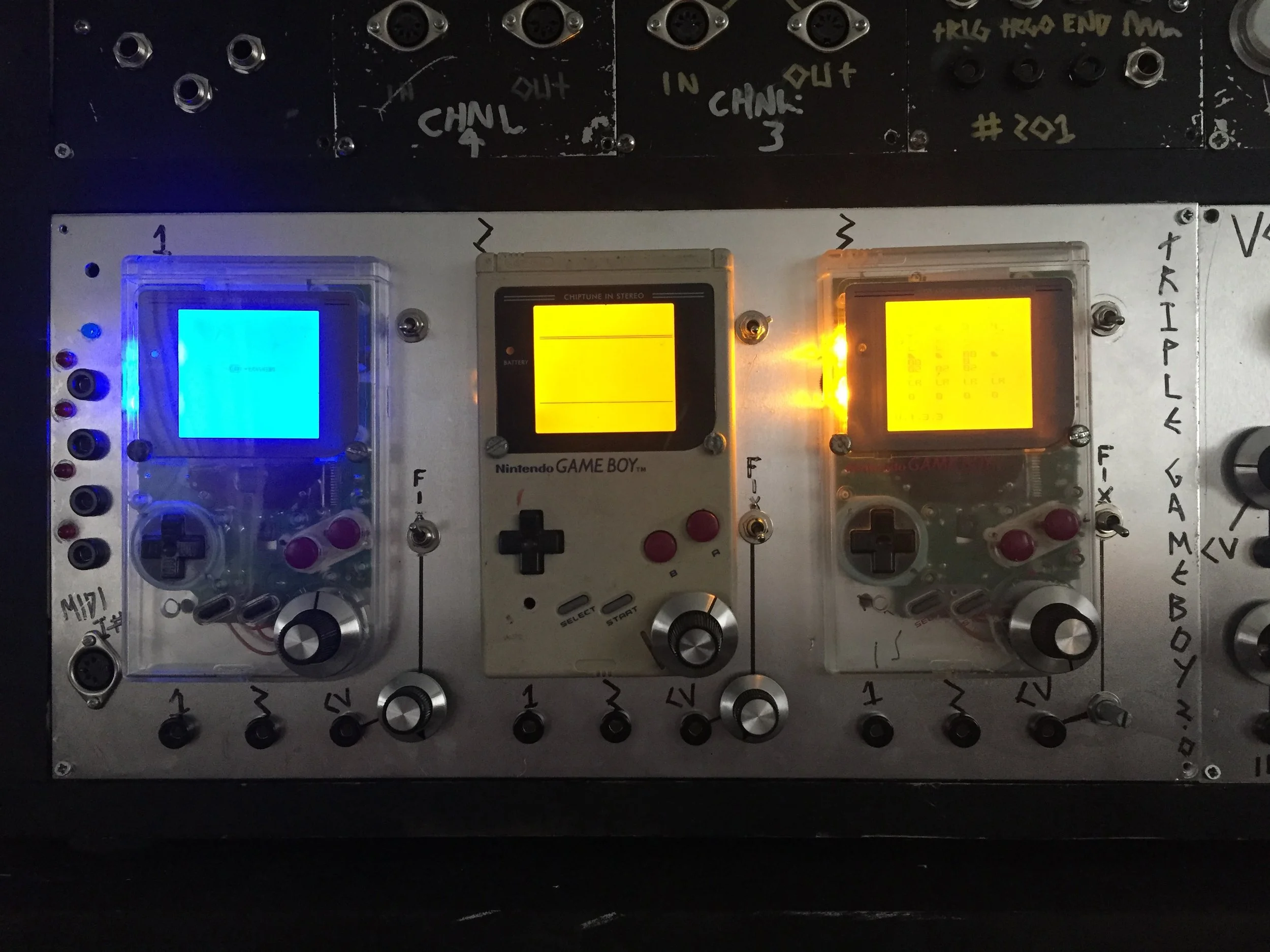

gameboy synth

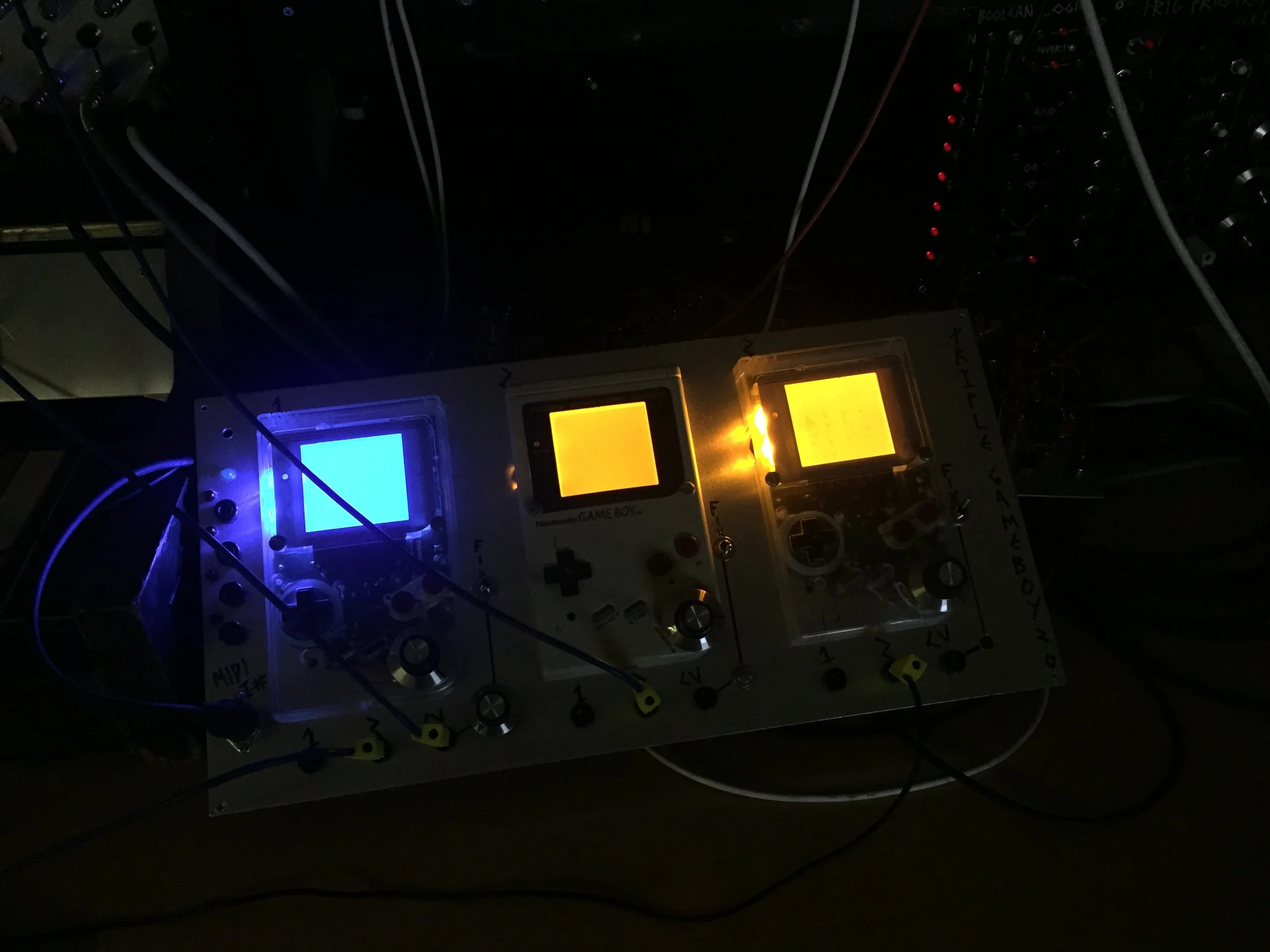

Gameboy triple oscillator

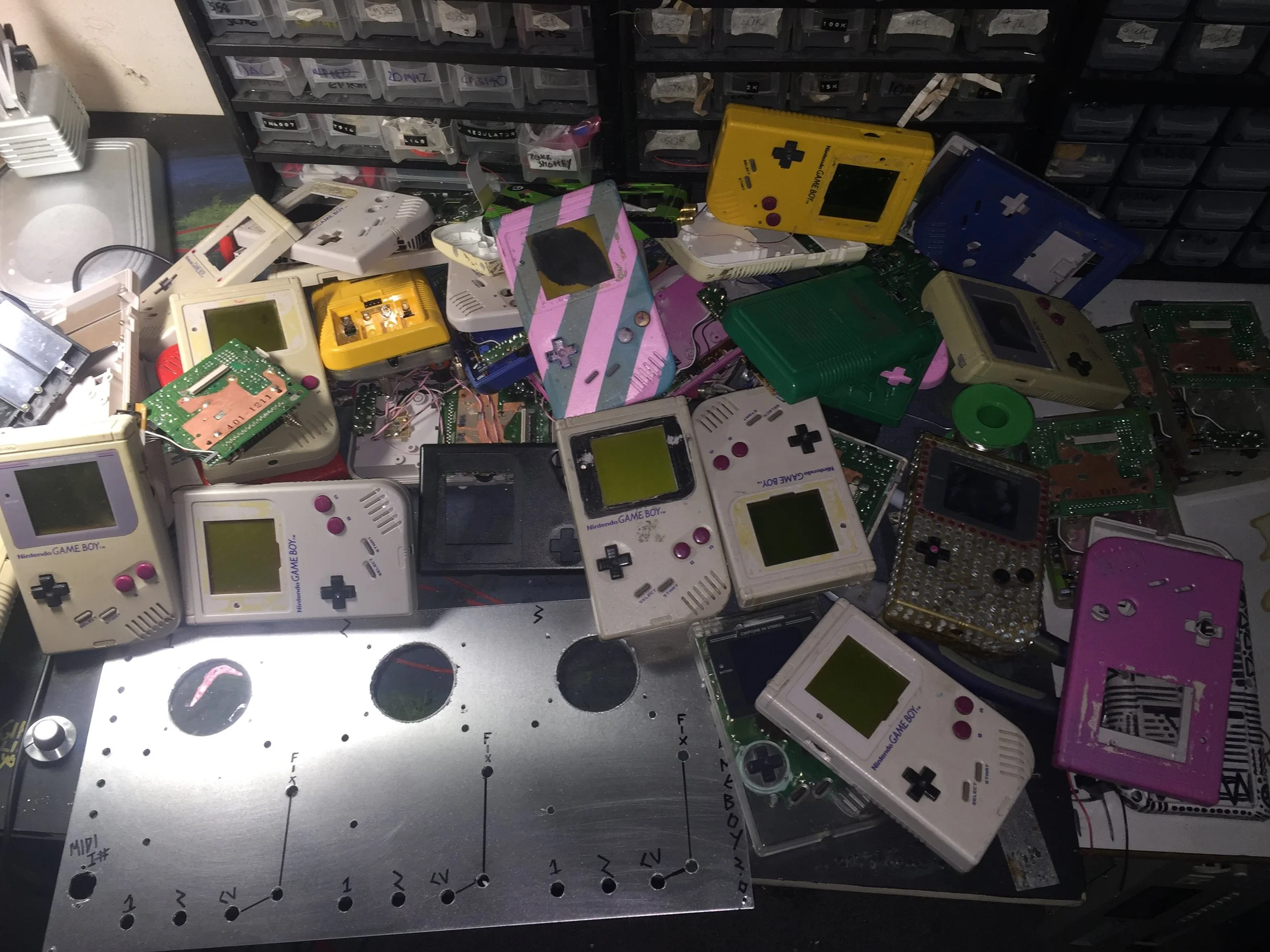

 First find gameboys that work. A couple of years ago i managed to amass over 200 gameboys, sadly im left with the offcuts after backlighting and pro sounding them all. so it was a case of making 3 work again.

First find gameboys that work. A couple of years ago i managed to amass over 200 gameboys, sadly im left with the offcuts after backlighting and pro sounding them all. so it was a case of making 3 work again.

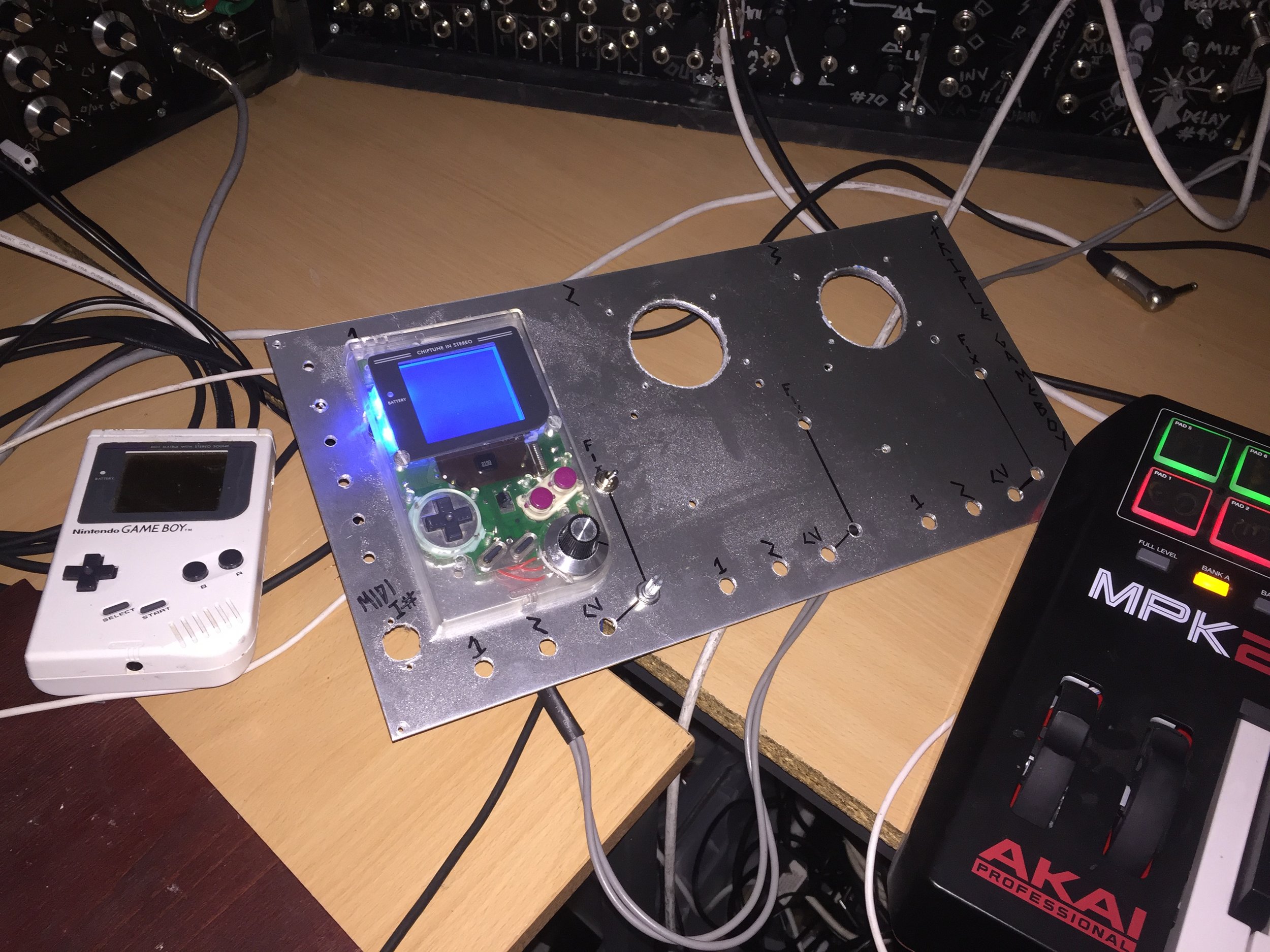

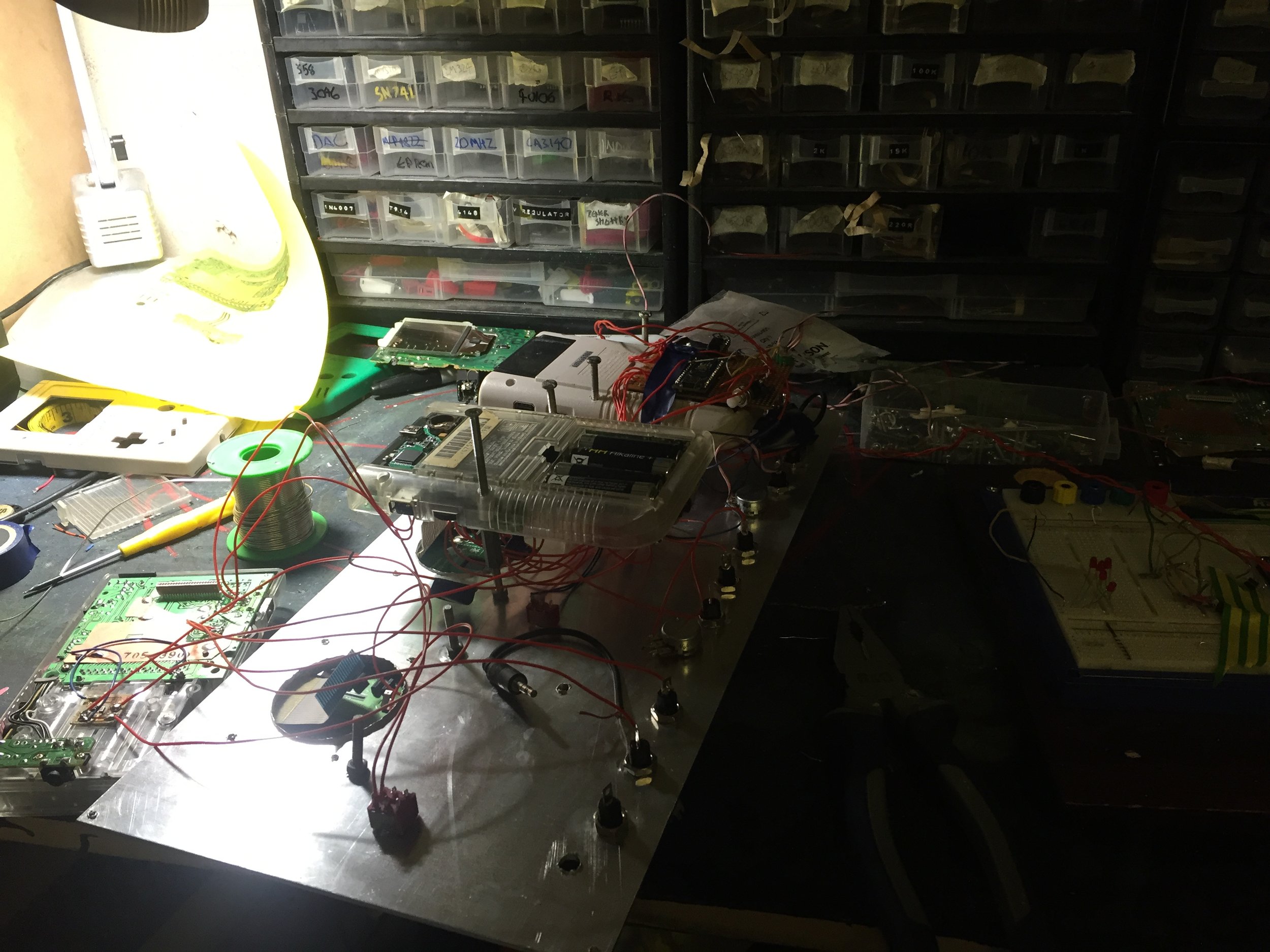

 The gameboys are mounted with the backs on standoffs behind the panels and the fronts bolted to the front. with all supporting circuitry in and around them.

The gameboys are mounted with the backs on standoffs behind the panels and the fronts bolted to the front. with all supporting circuitry in and around them.
